CATV CCTV Camera Cable RG59 with Power Cable/ RG59 +2C Siamese Cable

FOB Reference Price:Get Latest Price
$0.06 - $1.50 / Meter | 30000 Meter/Meters (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Meters) 1 - 30000 >30000
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
RG59
Number of Conductors:
3
Name:
CATV CCTV Camera Cable RG59 with Power Cable/ RG59 +2C Siamese Cable
Type:
Coaxial
Application:
CCTV CAMERA
Conductor:
Copper CCA CCS
Insulation:
Foam PE
Shield:
Al Foil+braiding
Jacket:
PVC
Power:
0.5mm2/0.75mm2
Certification:
CE/ROHS/ISO9001
Supply Ability
Supply Ability:
1500000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
CATV CCTV Camera Cable RG59 with Power Cable/ RG59 +2C siamese cable
1.100m/roll, 200m/roll,
2.305m/roll,
3.100yard/roll, 200yard/roll, 300yard/roll
4.Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request
Port
Ningbo/Shanghai
Lead Time :
Quantity(Meters) 1 - 30000 >30000
Est. Time(days) 20 To be negotiated
Product Description

CATV CCTV Camera Cable RG59 with Power Cable/ RG59 +2C Siamese Cable

Q: What is the specification of this RG59 with power cable ?

A: Hi,the Specification are as below(a and b),if you have your own specification,pls tell us ,we can do as your specification.

a: 0.643Cu/CCS+3.66SPE+90%Braiding Coverage+6.0PVC+2*0.5mm2 power/2*0.75mm2 power CCA or Copper
b: 0.813Cu/CCS+3.66FPE+Bonded foil+60% Braiding Coverage+6.0PVC+2*0.5mm2 power/2*0.75mm2 power CCA or Copper.

Q:Can it work in 305meters for camera?

A:yes,dear.we have tested 305meter reel cable by camera,CCS conductor 305meter also have very clear video for camera.


Q:For the RG59 power cable , 2*0.5MM2 CCA can work well?

A:For the Power cable 2*0.5MM2 CCA power cable ,if you use the suitable voltage power bank ,it can work well,if the power bank voltage is too high,it is easy to cut.we suggest you use the 2*0.75mm2 CCA power cable,that will be very good.


Q: Do you have other material for this cable?

A:Yes,dear,we have below 6 tips option for the material,you can choose as you like.

1) Inner Conductor: Tinned Copper, Bare Copper, Copper Clad Steel available;
2) Al-foil: Al-foil, bonded Al-foil, double bonded Al-foil, and APA available;
3) Braiding Wire: AL-Mg, Bare Copper and Tinned Copper available;
4) Braiding Wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding Coverage: 45%- 95% available
6) Jacket Color: White, Black, Transparent and etc.


Q:Do you have technic characteristics about this cable ?

A:Yes,we have ,the below form is the characteristic .

Standard Shield
Power Cable

Conductor
Material
BC/CCS
BC/CCA
Nom.Dia.
0.81+/-0.01mm
2*0.5mm2/2*0.75mm2

Dielectric
Material
Foam PE
/
Nom.Dia.
3.66mm
/

Shield
Material
AL/BC/CCA Braiding
/
Coverage
45%-95%
/


Jacket
Material
PVC
PVC/PE
Nom.Thick.
0.6mm
/
Nom.Dia.
6.15+/-0.10mm
/
Attenuation[68F(20 degree)]
Frequency(MHZ)
Maximum(dB/100ft)
Maximum(dB/100m)
5
0.86
2.82
55
2.05
6.73
300
4.45
14.6
600
6.20
20.34
1000
8.12
26.64
1450
9.88
32.41
1800
11.81
38.72
2200
13.05
42.78
Nominal Impedance(ohm)
75
Nominal Velocity of Propagation(%)
85
Nominal Capacitance(pF/m)
50
Speaker Test(VAC)
4000

SRL(dB)
50-300
>20
300-1000
>20

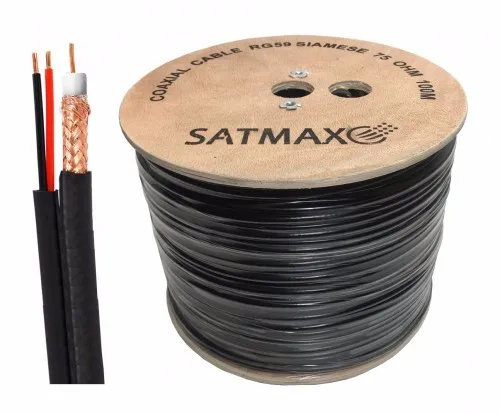

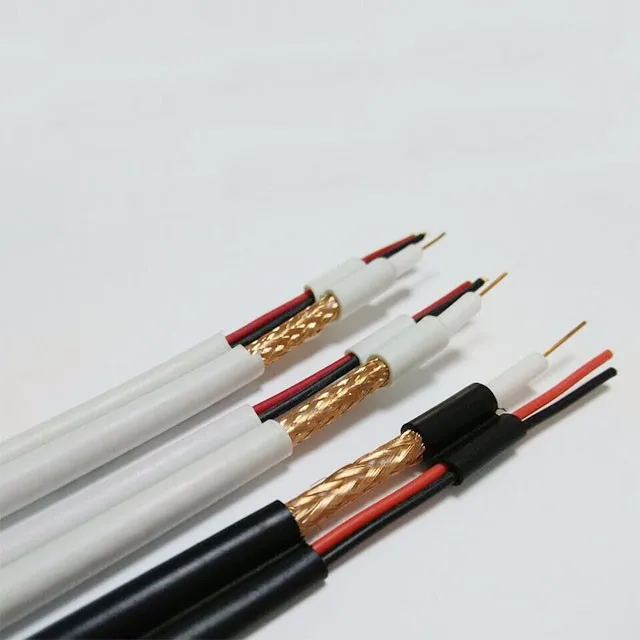

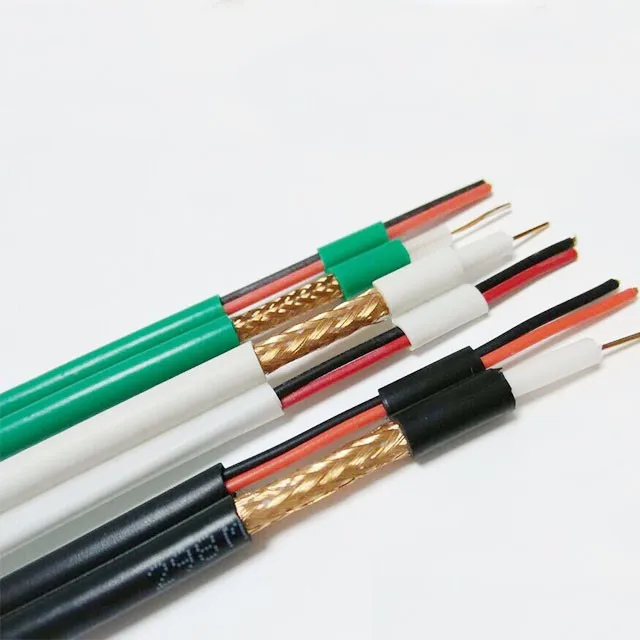

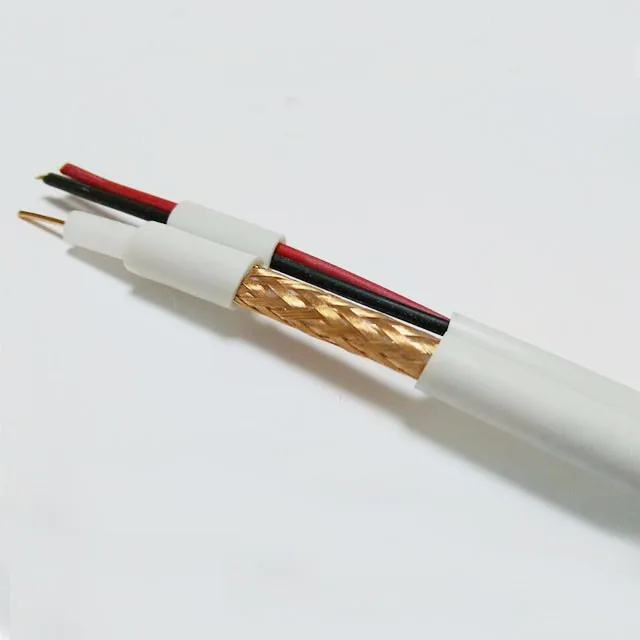

Detailed Images

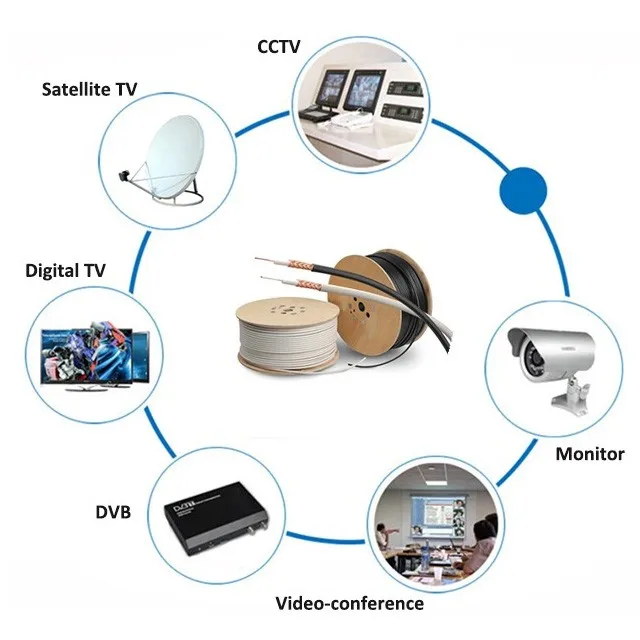

Application :

1.CATV-community antenna television
2.CCTV-closed-circuit television
3.DBS-direct broadcasting satellite

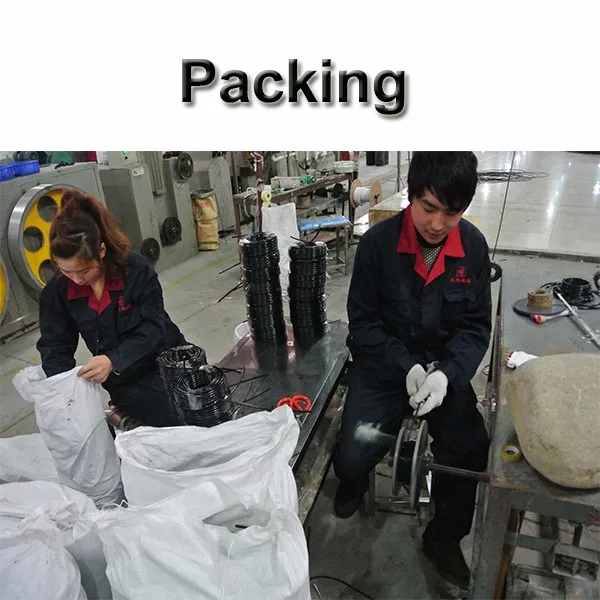

Packing

Q: What kinds packing do you have ?

A: hi dear,normally ,we have below packings .

Payment

Q:What kind of payment are you accepted ?

A: For large orders, T/T , L/C both can.
     For sample order or small orders, credit-cards Paypal, Western Union are accepted.

Shipment

Q:For Shipment,what are u use normally?

A:For sample order, normally,We ship by air or by express(about the express fee,if you have express collect account,pls tell us ,we can arrange to your account,if you don't have ,you can pay by paypal,credit-card,western union).

    For large orders use LCL or container by sea.

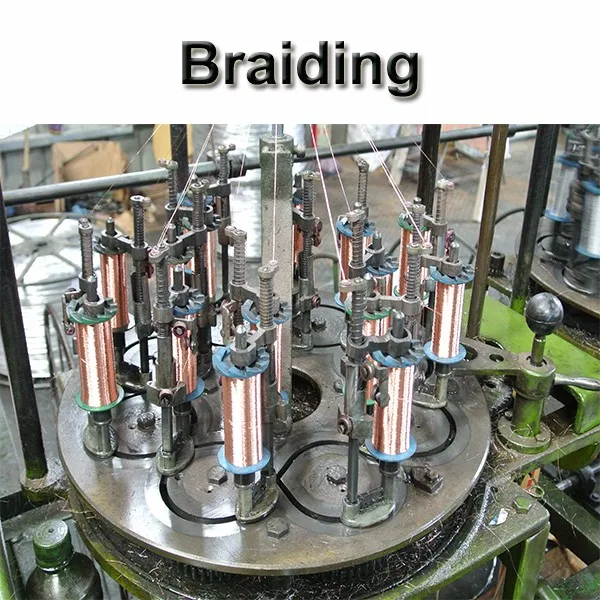

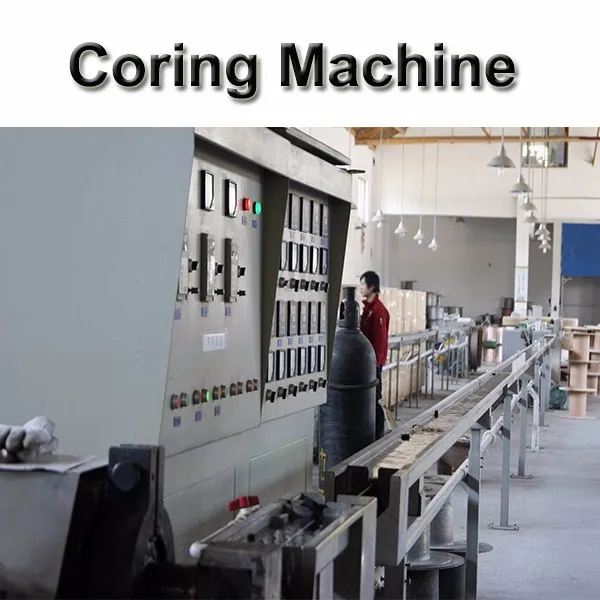

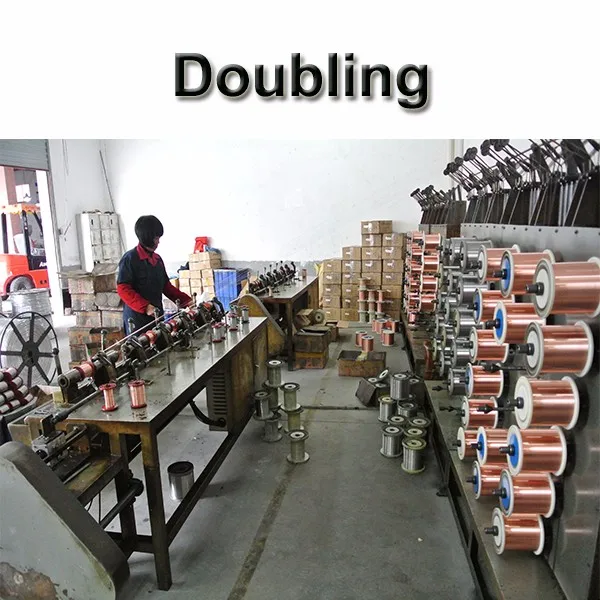

Production Line

Q:Are you factory or trading company?

A:Yes,We are a professional direct cables manufacturer more than 10 years located in        Lin'an,Hangzhou. Can provide you high quality cables with best factory price.

FAQ:

Q:What is your MOQ?
A:Free MOQ. You'll be highly appreciated,if you could provide us your QTY. Then we'l     l calculate cost correspondingly.


Q:Can I get samples?
A:Yes. Samples will be sent for checking. We usually send samples by DHL,Fedex,UPS,TNT or Aramex. If you have carrier account,it'll be pleased to ship with your accoun t. If not,you can pay by Western Union,Paypal or others.


Q:How long is sample & production leadtime?
A:1.Sample leadtime: 3-5 days,after confirmed your payment.
    2.Production leadtime:15-20 days,after confirmed sample & payment.


Q:Do you accept OEM or ODM?
A:Yes,we're factory. And we have our own Engineering Department. You just need tosend us your requirements.
